A Sun-Powered Bin Lid Breaks Down the Vinegar Smell of Garbage

ROT has a signature note, and it is vinegar. A lithium-doped manganese dioxide coating on a bin-lid insert uses sunlight to break down acetic acid, one of the main odor compounds in rotting food, instead of just trapping it. A team that includes researchers at Central China Normal University in Wuhan built the insert and tested it on bins loaded with fruit, bread and red wine, reporting the results in Environmental Science & Technology. What the data leave open is how much sun that chemistry really needs.

Garbage left at the curb in a warm, humid climate turns quickly, and the usual fix is a charcoal filter tucked under the lid. Humidity wears those adsorbents down, the authors note (a separate paper reports that high-surface-area adsorbents can lose much of their capacity to competition from water), so the spent filters pile up as waste of their own.

Lithium Packs the Oxygen With Electrons

Manganese dioxide is an inexpensive catalyst (manganese-based ones are widely studied for breaking down volatile organic compounds) that, once sunlight activates it, can both adsorb organic acids and break the bonds of acetic acid, so the team started there, and it was lithium bonded ionically into the lattice that made it work better than the plain version or activated carbon in simulated sunlight. In the group’s account, the lithium-oxygen bond is ionic, so it parks extra electrons on the oxygen atoms, while the manganese-oxygen bond is covalent and works as a channel that lets those electrons move. Electron-rich oxygen of that kind, according to the team’s calculations, can split a water molecule with a barrier of just 0.01 electronvolts, against 1.10 for plain manganese dioxide. The reactive dihydroxy groups that result then go after the oxygen-hydrogen and carbon-hydrogen bonds of acetic acid itself.

That 0.01 is a calculated barrier on a model surface, not a number anyone measured in a bin. So does the chemistry survive contact with a real reactor?

In bench tests with 50 parts per million of acetic acid at 180 degrees Celsius, the lithium catalyst converted all of it and sent roughly 75 percent of the converted acid on to carbon dioxide, which means the acid was dismantled rather than just rearranged, whereas plain manganese dioxide converted roughly 92 percent but turned only about 9 percent into carbon dioxide. Under a xenon lamp, that carbon dioxide share climbed with light intensity, from roughly 34 percent at 174 milliwatts per square centimeter to 100 percent at 291. And humidity, the thing that undoes charcoal, did little harm: at about 2.4 percent water vapor by volume, conversion settled near 93 percent and stayed there for 50 hours.

From the Lamp to the Curb

“We wanted to address the odor at its source, inside the bin itself, instead of letting it escape into the street,” says Jinlong Wang at Central China Normal University, a corresponding author of the study. The group’s answer was a transparent, gas-permeable insert that carries a lens, which concentrates light onto a layer of the catalyst (a separate study of manganese oxide catalysts also focused sunlight with a plastic Fresnel lens), in a removable module that fits the lid of a standard wheeled bin.

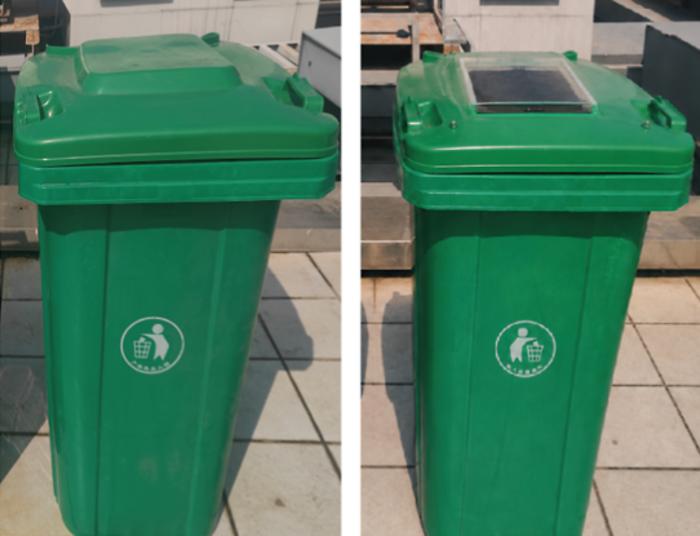

For the outdoor trial the team loaded two bins with fruit, bread and red wine, one fitted with the insert and one with an ordinary lid (the supporting information lists a batch of about 3 kilograms, 200 milliliters of it wine). Acetic acid readings in the test bin mostly stayed below roughly 500 parts per billion, while the reference bin often read several hundred and peaked near 1500. The record stretches across about 1000 hours, a little over 40 days, though it arrives as clusters of readings with gaps between them, not the unbroken line that the word continuously in the release suggests. It is also a comparison of two bins, with no repeat runs reported in the supporting information, so the scatter in those readings is not something anyone can average away. The used catalyst even showed a new peak in its X-ray diffraction pattern, a hint that its structure shifted somewhere along the way, though the cause is not given.

Full sun, by the standard reference used in solar research, carries about 100 milliwatts per square centimeter, so the lamp setting that took carbon dioxide selectivity to 100 percent was nearly three times that. In one light-only run, at an intensity the supporting information does not state, the catalyst converted about 85 to 90 percent of the acetic acid but turned only about 12 percent of it into carbon dioxide.

The press release calls acetic acid the main culprit in garbage odor, while the paper’s abstract calls it a key one among the volatile fatty acids that rotting waste gives off. The outdoor record tracks acetic acid alone, which leaves the other smelly molecules in a bin as open questions.

“Conventional catalytic odor abatement relies on electrical heating to activate the catalyst, but we use light instead,” says Wang. No plug, no heater. The authors say the approach could someday offer a sustainable way to control odor in waste management. Someday is doing a lot of work there.

A bin on a curb lives through nights, overcast weeks and cold snaps, and the supporting information does not say how the readings split between them. If the insert keeps its edge through all of it, the vinegar smell will have met its match; if not, the lamp results will have flattered it.
